Technical Guide: Waters QTOF Mass Analyzer Design
1. QTOF Technology Overview
Quadrupole Time-of-Flight (QTOF) mass spectrometry combines the mass filtering capabilities of a quadrupole (Q) with the high-resolution mass analysis of a time-of-flight (TOF) analyzer. This hybrid approach enables precise mass measurements with high sensitivity and speed, making QTOF systems invaluable in proteomics, metabolomics, and complex mixture analysis. The quadrupole selects precursor ions for fragmentation or transmits ions directly, while the TOF analyzer measures ion flight times to determine m/z with high resolution and accuracy.

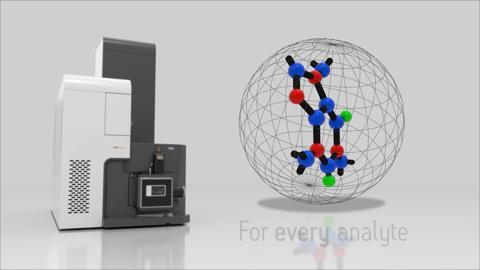

Waters Corporation has been a pioneer in advancing QTOF technology, integrating ion mobility spectrometry (IMS) and innovative electronics to improve duty cycle, resolution, and dynamic range. This guide provides a detailed examination of the design principles and diagnostics of Waters Synapt G2-Si and Vion IMS QTOF systems, renowned for their analytical performance and robustness.
2. Waters QTOF Design Principles
2.1 Quadrupole Mass Filter
Waters QTOF systems employ a segmented quadrupole mass filter located at the front end of the instrument. The quadrupole rods are precision-machined and hyperbolic in geometry, enabling mass selection with unit resolution typically around 1 Da full width at half maximum (FWHM). The RF and DC voltages applied are computer-controlled, allowing dynamic adjustment for precursor ion isolation or full scan transmission modes.
2.2 Orthogonal Acceleration TOF Analyzer
The TOF analyzer uses orthogonal acceleration (oa-TOF) to improve mass resolution and accuracy. Ions exiting the quadrupole are pulsed orthogonally into the TOF flight tube, where ions separate based on their m/z ratios. Waters' reflectron design incorporates ion mirrors to correct for kinetic energy spread, effectively increasing flight path and resolution.
2.3 Ion Mobility Spectrometry (IMS) Integration
Both Synapt G2-Si and Vion IMS QTOF systems feature an ion mobility stage between the quadrupole and TOF. The traveling wave IMS (TWIMS) in Synapt G2-Si uses a series of stacked ring electrodes with RF and DC potentials to separate ions based on their shape, size, and charge — adding an orthogonal dimension to mass analysis. The Vion IMS QTOF utilizes a similar IMS design with enhanced gas flow and wave control for improved separation and sensitivity.
2.4 Detector and Electronics
Waters employ multi-channel plate (MCP) detectors coupled with time-to-digital converters (TDC) for ion detection. The TDC electronics digitize ion arrival times with picosecond resolution, enabling high mass accuracy (typically < 2 ppm) and fast acquisition rates (> 20 spectra/s). The electronics architecture is optimized for low noise and high dynamic range, critical for quantitation and complex mixture analysis.
2.5 Vacuum and Ion Optics
High vacuum (< 10-6 Torr) is maintained through multi-stage pumping systems combining turbomolecular and dry scroll pumps. Ion optics, including ion guides and transfer optics, utilize RF-only quadrupoles and hexapoles to efficiently transmit ions with minimal losses. The design emphasizes ion focusing and desolvation prior to mass analysis.
3. Technical Specifications
| Specification | Synapt G2-Si | Vion IMS QTOF |
|---|---|---|
| Mass Range (m/z) | 50 – 2000 | 50 – 2000 |
| Mass Resolution (FWHM) | Up to 40,000 | Up to 30,000 |
| Mass Accuracy | < 2 ppm (lockmass) | < 2 ppm (lockmass) |
| Scan Speed | > 20 spectra/s | > 20 spectra/s |
| Ion Mobility Separation | Traveling Wave IMS (TWIMS) | Traveling Wave IMS (TWIMS) |
| Detector | Dual MCP with TDC electronics | Dual MCP with TDC electronics |
| Quadrupole Mass Filter | Segmented hyperbolic rods | Segmented hyperbolic rods |
| Vacuum System | Turbo + Dry scroll pumps | Turbo + Dry scroll pumps |
| Dynamic Range | ~105 | ~105 |
4. Advanced Diagnostics
Maintaining optimal performance of Waters QTOF systems requires routine diagnostics leveraging both hardware and software tools integrated within the instrument control software (MassLynx and UNIFI). Key diagnostic modes include:
- Ion Optics Transmission Checks: Monitoring ion current at multiple stages (source, quadrupole, IMS cell) helps identify transmission losses or misalignments.
- Vacuum Level Monitoring: Continuous monitoring of vacuum gauges ensures pumps are functioning and no leaks are present, essential for stable ion trajectories.
- Mass Calibration and Lockmass Performance: Automatic calibration routines verify mass accuracy; deviations beyond specified ppm thresholds indicate tuning or contamination issues.
- Detector Health and Gain Settings: MCP gain curves and dark count rates are periodically measured to track detector aging and sensitivity loss.
- Ion Mobility Waveform Analysis: Wave velocity, height, and gas flow diagnostics provide feedback on IMS performance, critical for peak shape and resolution.
Waters' proprietary diagnostic software modules provide graphical outputs of these parameters in real-time, allowing the operator to perform preventative maintenance or targeted troubleshooting.
5. Safety Precautions
- High Voltage Hazards: QTOF systems operate with high voltage power supplies (up to several kV). Only trained personnel should access internal components. Always disconnect power before servicing.
- Vacuum System Safety: Rapid venting or pump failures can cause implosion risks. Ensure vacuum chambers are properly sealed and avoid physical shock to glass or metal components.
- Gas Cylinders and Supplies: IMS and source gases (e.g., nitrogen, helium) must be handled according to compressed gas safety protocols. Secure cylinders and inspect regulators regularly.
- Chemical Safety: Sample introduction involves solvents and reagents. Use appropriate PPE and work in fume hoods to avoid exposure.
- Laser/Ion Source Safety: Some ionization sources may emit UV or other radiation. Follow manufacturer guidelines and use interlocks where applicable.
6. Troubleshooting Guidelines
Common issues and recommended solutions in Waters QTOF systems include:
- Loss of Sensitivity:
- Check ion source cleanliness; contaminants reduce ionization efficiency.
- Inspect vacuum levels; degraded vacuum can scatter ions.
- Verify detector gain and replace MCP if aging is suspected.
- Mass Calibration Drift:
- Perform lockmass calibration; recalibrate if mass errors exceed 5 ppm.
- Check quadrupole RF/DC stability and replace power supply if fluctuating.
- Ensure stable temperature and humidity in instrument room.
- Poor Ion Mobility Resolution:
- Verify IMS gas flow rates and wave parameters; recalibrate wave height and velocity.
- Clean or replace IMS stacked ring assembly if contaminated.
- Vacuum Pump Alarms:
- Inspect for leaks or damaged seals.
- Check pump oil levels or dry pump filters as applicable.
- Restart pumps following manufacturer procedures.
- Software Communication Errors:
- Restart instrument control software and verify USB/Ethernet connections.
- Update firmware and drivers to latest versions.
For complex issues, consult Waters technical support or authorized service engineers. Maintaining a detailed log of instrument conditions and error codes aids efficient troubleshooting.
7. References
- Glish, G.L., Vachet, R.W. The Basics of Mass Spectrometry in the Twenty-First Century. Nat. Rev. Drug Discov. 2003, 2, 140–150. https://doi.org/10.1038/nrd1006
- Waters Corporation. Synapt G2-Si and Vion IMS QTOF System User Manuals and Technical Notes, 2023.
- Giles, K., et al. Applications of Ion Mobility Mass Spectrometry for Structural Characterization of Biomolecules. Anal. Chem. 2011, 83, 5, 2343–2350. https://doi.org/10.1021/ac102797y
